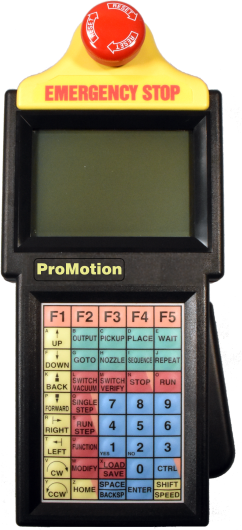

ProMotion

The ProMotion ASCII terminal is customizable for any need where safety is a concern. The ProMotion features a large LCD screen with text and graphics capabilities, E-Stop and Liveman switch. ANSI 3.64 (VT-100) compatibility makes it the perfect hand held HMI interface solution for existing products. The ProMotion is also remarkably rugged. The case is molded from Cycolac ABS®, one of the most durable, chemical-resistant materials available on the market today.

• Three Position Liveman Switch
• Double Pole E-Stop Switch
• Large Display
• ANSI 3.64 (VT-100) Compatibility
• Programmable Keys
• Advanced Control Mode (ACM)
• RS-232, RS-422, or CMOS/TTL Interface
• 20-, 30- or 45-Key Keypad
• Optional LED Indicators

Why use Two Technologies for your next purpose-built HMI project?

In today’s competitive environment, businesses need to react quickly to ever changing industry demands. Two Technologies can transform your requirements into reality with purpose-built HMIs.

Partnering with Two Technologies allows you to utilize our years of experience and know-how in the design and manufacture of durable HMI products built to your specific needs allowing you a faster time-to-market at a competitive price.

• Low minimum quantity
• Quick turn customization
• Custom firmware
• Custom overlays, logo tags, and case modifications
• Durable, high quality products
• 3-year warranty
• Long term support
• A history of collaboration since 1987
• In-house design

Customization Options

•  Options
•  Keypads
•  Accessories
•  Downloads

+ − Displays

Description

Option

Supertwist Nematic

Supertwist Nematic Display

• Display Format: 8 Lines x 24 Characters or 16 Lines x 32 Characters
• Character Format: 192 x 128 Pixels with Graphics Capabilities
• Character Set: Extended U.S. ASCII
• Operating Temp: 0°C to +50°C
• Storage Temp: -20°C to +70°C
• Typical Environment: Best suited for indoor environments, and performs well in indirect or diffused light

Close

Available

Supertwist Nematic Backlit

Supertwist Nematic Backlit Display

• Display Format: 8 Lines x 24 Characters or 16 Lines x 32 Characters
• Character Format: 192 x 128 Pixels with Graphics Capabilities
• Backlight provides better visibility
• Character Set: Extended U.S. ASCII
• Operating Temp: 0°C to +50°C
• Storage Temp: -20°C to +70°C
• Typical Environment: Best suited for indoor environments, and performs well in low-light conditions

Close

Available

Extended Temperature Supertwist Nematic Backlit

Extended Temperature Supertwist Nematic Backlit Display

• Display Format: 8 Lines x 24 Characters or 16 Lines x 32 Characters
• Character Format: 192 x 128 Pixels with Graphics Capabilities
• Backlight provides better visibility
• Character Set: Extended U.S. ASCII
• Operating Temp: -20°C to +70°C
• Storage Temp: -20°C to +70°C°C
• Typical Environment: Best suited for indoor environments, and performs well in indirect or diffused light

Close

Available

Supertwist Nematic LED Backlit

Supertwist Nematic LED Backlit

• Display Format: 8 Lines x 24 Characters or 16 Lines x 32 Characters
• Character Format: 192 x 128 Pixels with Graphics Capabilities
• Backlight provides better visibility
• Character Set: Extended U.S. ASCII
• Operating Temp: 0°C to +50°C
• Storage Temp: -20°C to +70°C
• Typical Environment: Best suited for indoor environments, and performs well in various indoor lighting conditions

Close

Available

+ − Interfaces

Description

Option

RS-232

Available

RS-422

Available

CMOS/TTL

Available

+ − Power

Description

Option

5.0 Volts DC ± 5%2

Available

7.5 to 12 Volt DC

Available

9.5 to 28 Volts DC

Available

+ − Keypads

Description

Option

20-Key, 30-Key or 45-Key Membrane

Available

20-Key, 30-Key or 45-Key Elastomeric

Available

30-Key or 45-Key Backlit

Available

45-Key Elastomeric Phosphorescent

Available

45-Key Backlit Phosphorescent

Available

Custom Keypads & Keypad Graphics

Available

+ − Other

Description

Option

Double Pole E-Stop

Available

Liveman with 14-Conductor Cable and DA-15 Connector

Not Available

LED Indicators

Available

VT-100 ANSI 3.64 Compatibility

Standard

• Elastomeric: These keypads provides a great look and excellent tactile feel. Epoxy caps make this keypad extremely resistant to wear and suitable for all environments, except where petroleum-based chemicals (oil) are present.
• Membrane: Best used when working in harsh conditions where chemical, dirt and liquids may be present.
• Backlit: LEDs, which can be powered on and off, are positioned behind the keycaps to illuminate them when needed.
• Phosphorescent: These keypads contain a phosphor material that glows after being exposed to light.

20-Key
Elastomeric

20-Key Elastomeric

Close

20-Key
Membrane

20-Key Membrane

Close

30-key
Elastomeric

30-Key Elastomeric

Close

30-Key
Membrane

30-Key Membrane

Close

45-Key
Elastomeric

45-Key Elastomeric

Close

45-Key
Elastomeric
Phosphorescent

45-Key Elastomeric Phosphorescent

Close

45-Key
Membrane

45-Key Membrane

Close

45-Key
Membrane
Backlit

45-Key Membrane Backlit

Close

+ − Permanent Connection Cables

Description

Part Number

10-Foot Permanent Wire to DA-15

91332

15-Foot Permanent Wire to DA-15

91331

25-Foot Permanent Wire to DA-15C

13718

+ − RTV Seal

Description

Membrane Keypad & Display

Click on a link to view the PDF in a new window where you can download it.

• ProMotion Specifications
• ProMotion User Guide
• ProMotion Customization Workbook
