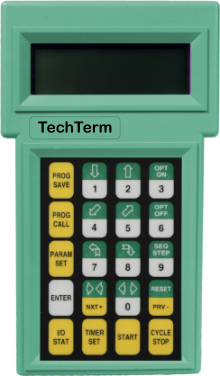

TechTerm

The TechTerm® is a low-cost, rugged ASCII hand held terminal that is customizable. Your equipment can directly control this HMI terminal using escape sequences, including cursor movement, appearance, and different signal tones from the built-in speaker. The TechTerm is also remarkably rugged. The case is molded from Cycolac ABS®, one of the most durable, chemical-resistant materials available on the market today.

• Menu Programmable function Keys
• RS-232, RS-422, or CMOS/TTL Interface
• 20-, 30- or 45-Key Keypad
• Optional Built-in Rechargeable Battery
• Three Year Warranty

Why use Two Technologies for your next purpose-built HMI project?

In today’s competitive environment, businesses need to react quickly to ever changing industry demands. Two Technologies can transform your requirements into reality with purpose-built HMIs.

Partnering with Two Technologies allows you to utilize our years of experience and know-how in the design and manufacture of durable HMI products built to your specific needs allowing you a faster time-to-market at a competitive price.

• Low minimum quantity
• Quick turn customization
• Custom firmware
• Custom overlays, logo tags, and case modifications
• Durable, high quality products
• 3-year warranty
• Long term support
• A history of collaboration since 1987
• In-house design

Customization Options

•  Options
•  Keypads
•  Accessories
•  Downloads

+ − Displays

Description

Standard Unit

Battery Unit

Twisted Nematic

Twisted Nematic Display

• Display Format: 4 Lines x 20 Characters
• Character Format: 5 x 7 Pixels
• Character Set: U.S. ASCII (Latin 1 or European also available)
• Operating Temp: 0°C to +50°C
• Storage Temp: -20°C to +70°C
• Typical Environment: Best suited for indoor environments, and performs well in indirect or diffused light.

Close

Standard

Standard

Supertwist Nematic

Supertwist Nematic Display

• Display Format: 4 Lines x 20 Characters
• Character Format: 5 x 7 Pixels
• Character Set: U.S. ASCII (Latin 1 or European also available)
• Operating Temp: 0°C to +50°C
• Storage Temp: -20°C to +70°C
• Typical Environment: Best suited for indoor environments, and performs well in indirect or diffused light

Close

Available

Available

Supertwist Nematic Backlit

Supertwist Nematic Backlit Display

• Display Format: 4 Lines x 20 Characters
• Character Format: 5 x 7 Pixels
• Character Set: U.S. ASCII
• Operating Temp: 0°C to +50°C
• Storage Temp: -20°C to +70°C
• Typical Environment: Best suited for indoor environments, and performs well in low-light conditions

Close

Available

Available

Supertwist Nematic LED Backlit

Supertwist Nematic LED Backlit

• Display Format: 4 Lines x 20 Characters
• Character Format: 5 x 7 Pixels
• Backlight provides better visibility
• Character Set: U.S. ASCII
• Operating Temp: 0°C to +50°C
• Storage Temp: -20°C to +70°C
• Typical Environment: Best suited for indoor environments, and performs well in various indoor lighting conditions

Close

Available

Not Available

Vacuum Fluorescent Display (VFD)

Vacuum Fluorescent Display

• Display Format: 4 Lines x 20 Characters
• Character Format: 5 x 7 Pixels
• Character Set: U.S. ASCII
• Operating Temp: -20°C to +70°C
• Storage Temp: -20°C to +70°C
• Typical Environment: Best suited for indoor environments, and generally performs well in low ambient lighting conditions

Close

Available

Not Available

Extended Temperature VFD

Extended Temperature VFD

• Display Format: 4 Lines x 20 Characters
• Character Format: 5 x 7 Pixels
• Character Set: U.S. ASCII
• Operating Temp: -40°C to +85°C
• Storage Temp: -20°C to +70°C
• Typical Environment: Best suited for both indoor and outdoor environments, and generally performs well in low ambient lighting conditions

Close

Available

Not Available

+ − Interfaces

Description

Standard Unit

Battery Unit

RS-232

Available

Available

RS-422

Available

Available

CMOS/TTL

Available

Available

+ − Power

Description

Standard Unit

Battery Unit

5.0 Volts DC ±5%

Available

Not Available

7.5 to 12 Volt DC

Available

Not Available

9.5 to 28 Volts DC

Available

Not Available

Built-in Rechargeable Battery

Not Available

Available

+ − Keypads

Description

Standard Unit

Battery Unit

30-Key or 45-Key Elastomeric

Available

Available

30-Key or 45-Key Membrane

Available

Available

30-Key or 45-Key Backlit

Available

Not Available

45-Key Elastomeric Phosphorescent

Available

Available

45-Key Backlit Phosphorescent

Available

Not Available

Custom Keypads & Keypad Graphics

Available

Available

+ − Other

Description

Standard Unit

Battery Unit

Double Pole E-Stop

Available

Not Available

Liveman with 14-Conductor Cable and DA-15 Connector

Not Available

Not Available

LED Indicators

Available

Available

• Elastomeric: These keypads provides a great look and excellent tactile feel. Epoxy caps make this keypad extremely resistant to wear and suitable for all environments, except where petroleum-based chemicals (oil) are present.
• Membrane: Best used when working in harsh conditions where chemical, dirt and liquids may be present.
• Backlit: LEDs, which can be powered on and off, are positioned behind the keycaps to illuminate them when needed.
• Phosphorescent: These keypads contain a phosphor material that glows after being exposed to light.

30-key
Elastomeric

30-Key Elastomeric

Close

30-Key
Membrane

30-Key Membrane

Close

45-key
Elastomeric

45-Key Elastomeric

Close

45-key
Elastomeric
Phosphorescent

45-Key Elastomeric Phosphorescent

Close

45-Key
Membrane

45-Key Membrane

Close

45-Key
Membrane
Backlit

45-Key Membrane Backlit

Close

+ − Cables

7 ft. Extended Coiled Cables

Part Number

Modular to Modular, Black

1210-7-BK

Modular to Modular, Gray

1210-7

Modular to Modular, Non-reversing, Gray

1210-7-NR

Modular to Stripped Leads, Black (1210-HD)

10172

15 ft. Extended Cables

Part Number

Modular to Modular, Black

1210-15-BK

Modular to Modular, Gray

1210-15

Permanent Connection Cable

Part Number

7 ft. with 6-Pin Modular Termination

Suffix-PW

15 ft. with 6-Pin Modular Termination

Suffix-PW15

7 ft. with DB-25P, DB-25S, DE-9S, DE-9P, or DA-15 Termination*

Suffix-PW

15 ft. with DB-25P, DB-25S, DE-9S, DE-9P, or DA-15 Termination*

Suffix-PW

* Wiring configuration must be provided; set up charges and minimums may apply.

Note: Permanent wire cables are not available with battery powered units.

+ − Adapters & Power Supplies

Modular to "D" Connector Kits

Part Number

Modular to DE-9P

1270-M-KIT

Modular to DE-9S

1270-F-KIT

Modular to DB-25P

1280-M-KIT

Modular to DB-25S

1280-F-KIT

Connector-Modular Socket (8-Inch Stripped and Tinned)

623k

Wired Adaptors with Power Socket

Part Number

Modular to DE-9S (PCAT)

91446

Modular to DB-25P (DTE)

1280-DTE

Modular to DB-25S (DCE)

1280-DCE

Power Supplies

Part Number

Power Supply

1226-1

Wall Mount Battery Charger

13799

+ − Other

Silicon Boots

Part Number

SB-160-Gray

12847

SB-160-Yellow

12679

SB-160-Black

12665

Mounts & Mounting Brackets

Part Number

Mounting Bracket (TTH-130)

10130

RTV Seal

Membrane Keypad & Display

Click on a link to view the PDF in a new window where you can download it.

• TechTerm Specifications
• TechTerm User Guide
• TechTerm Customization Workbook
