ProTerm

ProTerm

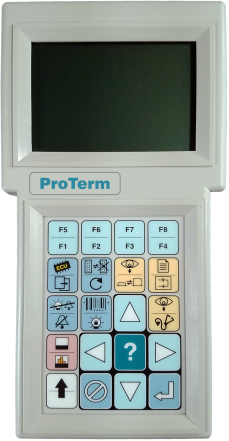

The ProTerm ASCII terminal features a large Liquid Crystal Display (LCD) with text and graphics capabilities, and programmable display characters. The exceptional size and clarity of the LCD makes the ProTerm ideal where long term readability is required. The ProTerm is also remarkably rugged. The case is molded from Cycolac ABS®, one of the most durable, chemical-resistant materials available on the market today.

  • Large Display
  • ANSI 3.64 (VT-100) Compatibility
  • Programmable Keys
  • Advanced Control Mode (ACM)
  • RS-232, RS-422, or CMOS/TTL Interface
  • 20-, 30- or 45-Key Keypad
  • Optional LED Indicators

Description
Option
Supertwist
Standard
Supertwist Backlit
Available
Supertwist Extended Temperature Backlit
Available
Description
Option
RS-232
Available
RS-422
Available
CMOS/TTL
Available
Description
Option
5.0 Volts DC ±5%
Available
7.5 to 12 Volt DC
Available
9.5 to 28 Volts DC
Available
Description
Option
20-Key, 30-Key or 45-Key Membrane
Available
20-Key, 30-Key or 45-Key Elastomeric
Available
30-Key or 45-Key Backlit
Available
45-Key Elastomeric Phosphorescent
Available
45-Key Backlit Phosphorescent
Available
Custom Keypads & Keypad Graphics
Available
Description
Option
Double Pole E-Stop
Available
Liveman with 14-Conductor Cable and DA-15 Connector
Not Available
LED Indicators
Available
VT-100 ANSI 3.64 Compatibility
Standard

  • Elastomeric: This keypad provides a great look and excellent tactile feel. Epoxy caps make this keypad extremely resistant to wear and suitable for all environments, except where petroleum-based chemicals (oil) are present.
  • Membrane: Best used when working in harsh conditions where chemical, dirt and liquids may be present.
  • Backlit: Best used in low light conditions.
20-Key Elastomeric

20-Key
Elastomeric

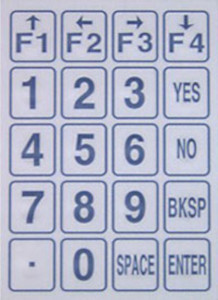

20-Key Membrane

20-Key
Membrane

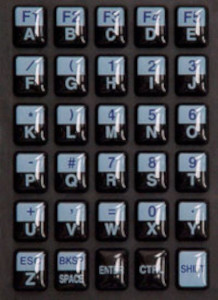

30-Key Elastomeric

30-key
Elastomeric

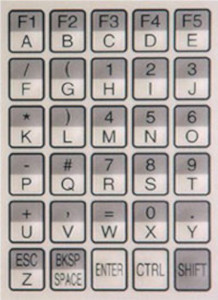

30-Key Membrane

30-Key
Membrane

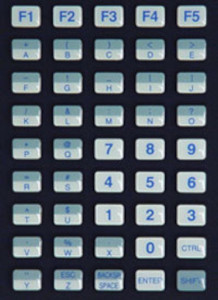

45-Key Elastomeric

45-Key
Elastomeric

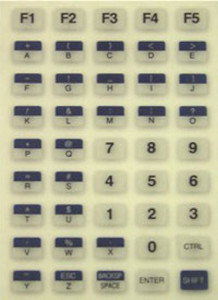

45-Key Elastomeric Phosphorescent

45-Key
Elastomeric
Phosphorescent

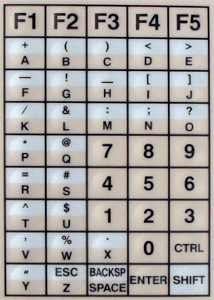

45-Key Membrane

45-Key
Membrane

45-Key Membrane Backlit

45-Key
Membrane
Backlit

7-Foot Extended Coiled Cables
Part Number
Modular to Modular, Black
1210-7-BK
Modular to Modular, Gray
1210-7
Modular to Modular, Non-reversing, Gray
1210-7-NR
Modular to Stripped Leads, Black (1210-HD)
10172
15-Foot Extended Cables
Part Number
• Modular to Modular, Black
1210-15-BK
Modular to Modular, Gray
1210-15
Permanent Connection Cable
Part Number
7-Foot with 6-Pin Modular Termination
Suffix-PW
15-Foot with 6-Pin Modular Termination
Suffix-PW15
7-Foot with DB-25P, DB-25S, DE-9S, DE-9P, or DA-15 Termination*
Suffix-PW
15-Foot with DB-25P, DB-25S, DE-9S, DE-9P, or DA-15 Termination*
Suffix-PW
* Wiring configuration must be provided; set up charges and minimums may apply.
Modular to "D" Connector Kits
Part Number
Modular to DE-9P
1270-M-KIT
Modular to DE-9S
1270-F-KIT
Modular to DB-25P
1280-M-KIT
Modular to DB-25S
1280-F-KIT
Connector-Modular Socket (8-Inch Stripped and Tinned)
623k
Wired Adaptors with Power Socket
Part Number
• Modular to DE-9S (PCAT)
91446
Modular to DB-25P (DTE)
1280-DTE
Modular to DB-25S (DCE)
1280-DCE
Power Supplies
Part Number
Power Supply
1226-1
Silicon Boots
Part Number
Yellow
13864
-Black
12885
Carrying Cases
Part Number
Protective Housing, Soft Matte Vinyl with Clear Cover & Strap (PCC-1)
12244
Mounts & Mounting Brackets
Part Number
Mounting Bracket (PTH-130)
10136
RTV Seal
Membrane Keypad & Display

Click on a link to view the PDF in a new window where you can download it.
